Leak-Free Integrated Fluid Solutions for Heavy-Duty OEMs
About the Case
Application: Commercial Vehicles / Heavy-Duty Machinery

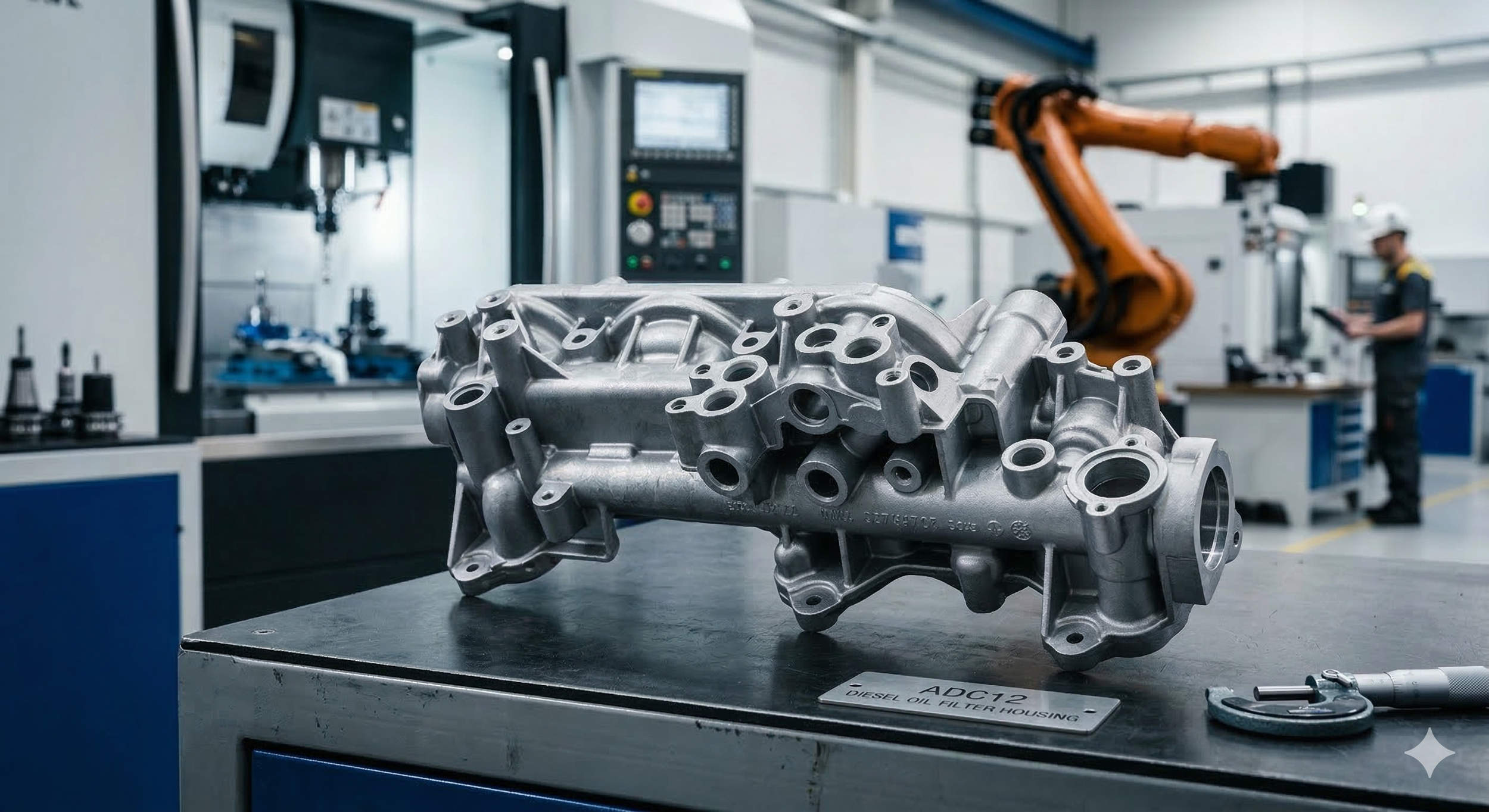

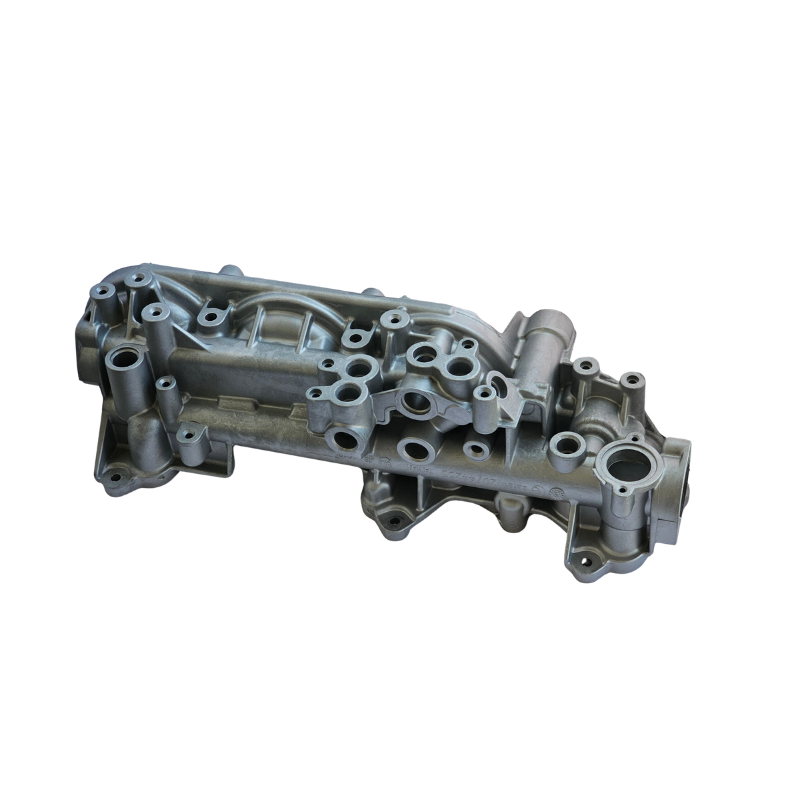

Product: Truck Oil Filter Housing (Engine Lubrication System)
Material: ADC12 Aluminum Die Casting Alloy
Capabilities: Complex Mold & Slider Design, High-Pressure Die Casting (HPDC), Precision CNC Machining
Teamsworld prevents high-pressure oil leakage in engine lubrication systems by manufacturing truck oil filter housings using ADC12 Aluminum High-Pressure Die Casting (HPDC) and precision CNC machining. This integrated solution perfectly forms intricate internal oil galleries and ensures absolute airtightness for long-term engine reliability under extreme pressure
Why Teamsworld
Customer Challenges:
A leading manufacturer required a high-performance oil filter housing to ensure the long-term reliability of their engine lubrication systems. The component features intricate internal oil galleries and critical sealing surfaces that must withstand extreme operational pressures. The primary technical hurdles included managing deep-draw sliders and eliminating mold stiction during production. Ensuring a flawless internal flow design was essential to prevent high-pressure oil leakage and pressure attenuation, both of which are vital to engine safety and longevity.
Capabilities Leveraged:
Teamsworld utilized specialized complex mold core and slider engineering to achieve the intricate internal geometries required for fluid routing. By leveraging High-Pressure Die Casting (HPDC) with ADC12 alloy, we ensured superior material density and casting fluidity. To guarantee the integrity of all sealing interfaces, our engineering team implemented precision CNC machining with multi-axis datum alignment. This integrated approach ensured all critical dimensions met strict tolerances, supporting both the mechanical fit and high-pressure performance of the final assembly.
Results:
Through advanced mold flow analysis and meticulous process parameter tuning, Teamsworld successfully delivered this Integrated Fluid Solution. The ADC12 alloy enabled the perfect formation of complex internal paths, while high-precision CNC machining ensured absolute airtightness. The upgraded housing provides a robust, leak-free solution that maintains maximum durability in the high-pressure environments of heavy-duty commercial vehicles, supporting the client's goal of long-term engine reliability.
FAQ
Q: What material is used for the truck oil filter housing?
A: Teamsworld uses ADC12 Aluminum Die Casting Alloy. Through High-Pressure Die Casting (HPDC) technology, this material ensures superior density and casting fluidity, which help perfectly form the intricate internal oil galleries within the oil filter housing.
Q: How do you prevent high-pressure oil leakage in engine lubrication systems?
A: Teamsworld guarantees the integrity of all critical sealing interfaces by combining High-Pressure Die Casting with precision CNC machining featuring multi-axis datum alignment. This ensures the housing achieves absolute airtightness, thereby preventing high-pressure oil leakage and pressure attenuation, ensuring engine safety and longevity under extreme operational pressures.
Q: How do you overcome the manufacturing challenges of intricate internal fluid routing? A: For components with complex internal fluid routing, Teamsworld utilizes specialized complex mold core and slider engineering to manage the technical hurdles of deep-draw sliders. Simultaneously, through advanced mold flow analysis and meticulous process parameter tuning, we successfully eliminate mold stiction during production, ensuring a flawless internal flow design
